Autel KM100 VCI V200 Working with MaxiSys Tablets Reviews

One customer asked if MaxiVCI V200 can be used with my scanner? He has his Autel MS919 Scanner and has been using the big VCI that came with the unit. Answer: This V200, the VCI of Aute KM100 , could be Bluetooth connected to MS919 or other tablets. Reviews of VCI200 working with Autel Tablets: 1)I bought this separately from my 909ev kit . I find it easier than bringing out the jbox every time. It will work you just need to pair it. I would check for updates too while you're at it 2)It works with the 919. I use the same BT dongle from our Autel battery tester 3)That’s a great score! Yes it will work (unless it’s from a BT608 , but there is no way to tell). I’d use it all the time instead of the VCMI (unless you need to use the scope function). That way your less likely to loose or damage your expensive VCMI! 4)I use mine daily 5)I have two of them. One from a its600 and another from the km100. I paired one to the its600 and my ms909. The other one I paired to the km100 a...

How to Solve FoxFlash/ KT200 Software Crash during Data Reading?

One customer gave feedback that FoxFlash software would crash while it was reading ECU. Tried to read data again, software would still disappear. Here Cardiagtool Tech shares Reason: FoxFlash Software doesn't have admin rights. Solution: Disable built-in admin account in WIN10. 1.Go to the Start menu (or press Windows key + X ) and select Computer Management . 2.Select Local Users and Groups and then Users 3.Select the Administrator and then right-click and select Properties . 4.Uncheck Account is disabled to enable it, or check it to disable it. 5.Click Apply and then OK 6.Restart computer http://blog.cardiagtool.co.uk/how-to-solve-foxflash-kt200-software-crash-during-data-reading/

How to Use GODIAG GT108 OBDI-OBDII Universal Adapter?

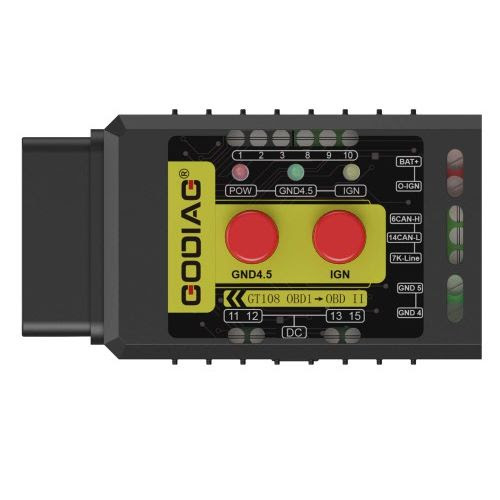

  GODIAG GT108 Adapter is designed for OBDI-OBDII conversion on cars, trucks, motorcycles, boats, etc. 1.Appearance 1)OBD2 female interface 2)Indicator light group 3)GND5 switch 4)IGN switch 5)DC power interface 6)1.2.3.GND4.GND5.6CAN-H.7K-Line.8.9.10.11.12.13.14CAN-L. 15. BAT+.O-IGN interface 2.How to Use? Find the definition of the diagnostic interface (find the maintenance manual of your own vehicle, or search online.), or see the definition diagram of the corresponding diagnostic interface of the GT108 Manual According to the interface definition, find out the connection line needed by your car, and connect to the GT108 Adapter according to the definition. (Use a screwdriver to lock the terminal) Connect the connected diagnostic cable to the vehicle OBD1 diagnostic interface according to the definition. (Connect GND 4 or GND5 first, and then connect BAT+. If the power cable is connected correctly, the POW light of the GT108 host will light up. If the vehicle diagnostic...

How is X431 IMMO Plus/ Elite for VAG AKL Programming?

  This article is about X431 IMMO Plus / IMMO Elite coverage for VAG vehicle key programming. X431 IMMO Plus/ Elite Support List: Make Model Year Key Adding All Keys Are Lost ECM TCM IC Replacement of anti-theft parts Immobilizer AUDI A1(8X/FT) 2011-2020 Supported It was supported before 2014 and will be released after 2014 Supported The fourth generation has no anti-theft data, which is supported by MQB. Not support after 2014 All four generations of engines are supported, and the instrument has been supported before 2014 4th Generation Instrument AUDI A3/S3/RS3(8L) 1997-2003 Supported Supported Unsupported The transmission has no anti-theft data. The instrument has no anti-theft data Supported 2nd And 3rd Generation Immobilizer AUDI A3/S3/RS3(8P/FM) 2004-2013.05 Supported Supported Supported The transmission has no anti-theft data. Supported Supported 4th Generation Instrument AUDI A3/S3/RS3(8V/FF) 2013.06-2020 Supported Unsupported Supported Supported Unsupported Supported MQB ...

Free Download V1.1.5.0 CG FC200 Software More Bosch EDC16 Added

V1.1.5.0 CG FC200 Software is released! Get free download link from Cardiagtool . With more EDC16 added, this tool now supports most of Bosch EDC16 & EDC17. Free Download CG FC200 Software: V1.1.5.0 CG FC200 V1.1.5.0 Update Info: 1.New platform mode engine for Bosch MPC5xx class: (Note: Require MPC5xx Adapter ) EDC16U31, EDC16C1, EDC16C10, EDC16C31, EDC16C32, EDC16C34, EDC16C35, EDC16C36, EDC16C37, EDC16C39, EDC16C41, EDC16C9, EDC16CP33, EDC16CP34, EDC16CP36, EDC16CP39, EDC16U34, EDC16UC40, ME9.1.1, ME9.6.1 2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01, DCU17PC42, DCU17PC43, DCU17CV51, DCU17PC_ DNX 3.KEFICO TC series engines add PFlash verification function 4.GM series engines add PFlash verification function 5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R) 6.Optimize the verification algorithm for VGS2-FDCT type transmissions 7.Fix some MD1CS089 engine connection failure issues 8.Fix some bugs and optimize softwa...

Toyota/ Lexus BA Model List and Key Programmers

  What is Toyota BA remote? Here we will show you all Toyota BA models and superior key programmers for them. 1.What is Toyota BA Model? BA is one of immobilizer types for Toyota after 2022. Read original key info. If P4 numbers begin as "BA", the car is BA type. 2.Toyota BA Model List 8A   (DST AES)RF432 Toyota Harrier 2022- Key PCB Number 3041 Toyota Venza 2021- Key PCB Number 3041 Toyota Rav4 2021- Key PCB Number 3041 with A/C Button on BA Remote Toyota Sienna 2021- Key PCB Number 3041 Toyota Granvia 2022- Key PCB Number 3041 Toyota Tundra 2022- Key PCB Number 3041 Toyota BZ4X(EU) 2022- Key PCB Number 3041 Toyota Levin 2023- Key PCB Number 3041 Toyota Land Cruiser 2022- Key PCB Number 2050 Toyota Sequoia 2023- Key PCB Number 3041 Toyota Pirus 2023- Key PCB Number 3041 Lexus NX Series Key PCB Number 6100 Lexus LX Series Key PCB Number 0100 3.Key Programmers for Toyota BA Models Autel IM Tablet with G-box OBDSTAR IMMO Tablet with Toyota-30 Cable Lonsdor K518 with Toyot...

Solved! Can't Update Launch X431 IMMO Plus Firmware

  One customer gave feedback that he could not update firmware for his X431 IMMO Plus Tablet . It said "Device no response, please retry". Here Cardiagtool tech shares Solution: Connect IMMO Plus to X431 Key Programmer before firmware update. http://blog.cardiagtool.co.uk/solved-cant-update-launch-x431-immo-plus-firmware/

Launch X431 PRO Elite Review: A Budget Tool with Powerful Features

  This article is a review about Launch X431 PRO Elite , the budget scanner from Launch. General This is a next-level scan tool for professional diagnostics and at a affordable price at 500 dollars. You can add on battery adapters, TPMS adapters, add it onto this scan tool. Service Function This tool has 32 reset functions. Vehicle Coverage Way more 150 vehilces. Mall You can add on these things, stuff, cars. Package OBD cable, charging cable, user manual, a bag of connectors you'll never use, They are in a hard case, a nice shell. Other Functions Tablet setting, browser... Toolbox has IMMO Programmer, that is very important. This do a huge selection of immobilizer programming. Demo Mode This is a little bit faster than what it really is. TPMS We got to add on for TPMS and have a reader to attach to. Summary The main focus of these scan tools is the functions and additions that you get at the beginning. There are a few cars that this doesn't do great at like Asian cars. X431 PR...

Yanhua FEM/BDC EEPROM Socket on Xhorse Key Tool Plus Review

  This article is a review of Yanhua FEM/BDC EEPROM Socket : Play with bmw fem, Xhorse Key Tool Plus with Yanhua EEPROM Socket. Procedure: Automatically identify system. FEM programming process. Backup coding. Read 95128/95256 chip data by Yanhua FEM Socket . Preprocessing takes a few minutes. Write back chip data. Done! You can also try Yanhua FEM/BDC Programming Clip on Xhorse. http://blog.cardiagtool.co.uk/yanhua-fembdc-eeprom-socket-on-xhorse-key-tool-plus-review/
