Clone VAG Gearbox: Launch X431, OBDSTAR, or FoxFlash?



In this article, we are going to compare 3 tools to see how they clone VW gearboxes.

We will cover:

Launch X431 ECU&TCU Programmer

OBDSTAR DC706

FoxFlash

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-1

1.X431 ECU&TCU Programmer (€628/€570)

This tool has 2 versions:

1)X431 ECU&TCU Programmer -- standalone

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-2

2)X-PROG3 PC Adapter -- work with XPROG-3 Programmer

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-3

Select ECU type or direct search.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-4

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-5

There is an optional adapter for every supported gearboxes of VAG, Mercedes...

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-6

Or direct connect by cables.

Then R/W EERPOM&FLASH.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-7

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-8

Also we can process data, immo off and checksum.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-9

Support List:

ECU NameECU TypeECU BrandG3FLEX
EDC16XXECMBoschSupportSupport
EDC17XXECMBoschSupportSupport
MD1CSXXXECMBoschSupportSupport
MD1CPXXXECMBoschSupportSupport
ME17.X.XECMBoschSupportSupport
MED17.X.XECMBoschSupportSupport
MED9.X.XECMBoschSupportSupport
MEV17.X.XECMBoschSupportSupport
MEVD17.X.XECMBoschSupportSupport
MG1CSXXXECMBoschSupportSupport
MG1CPXXXECMBoschSupportSupport
MSDXXECMCONTINENTAL/SIEMENSSupportSupport
MSVXXECMCONTINENTAL/SIEMENSSupportSupport
SDIXECMContinentalSupportSupport
GM EXX/TXXECMDELCOSupportSupport
SIM271XXECMContinentalSupportSupport
SIMOS12.XECMContinentalNot supportSupport
SIMOS8.XECMContinentalSupportSupport
SIMOS-PCR2.XECMContinentalNot supportSupport
6HPXXTCMZFSupportSupport
8HPXXTCMZFSupportSupport
7DCT300TCMZFSupportSupport
9G TronicTCMBoschSupportSupport
ALXXXTCMZFSupportSupport
TCXXTCMBoschSupportSupport
DPS6/DC4TCMGETRAGSupportSupport
DKGTCMGETRAGSupportSupport
DLXXXTCMTemicSupportSupport
DQXXXTCMTemicSupportSupport
MPS6TCMGETRAGSupportSupport
SPS6TCMGETRAGSupportSupport
VGSXTCMGETRAGSupportSupport
VL381TCMTemicSupportSupport
GM 6TXX/6LXXTCMDELCOSupportSupport
MEDG17.9.8TCMBoschSupportSupport
MEG17.9.2TCMBoschSupportSupport

Read More:

Clone VAG gearbox by Launch Tablet






2.OBDSTAR DC706 (€700-€1,300)

This tool, mainly for module clone, has 3 version including 1-3 modules of ECM, TCM, Body System.

Select TCU.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-10

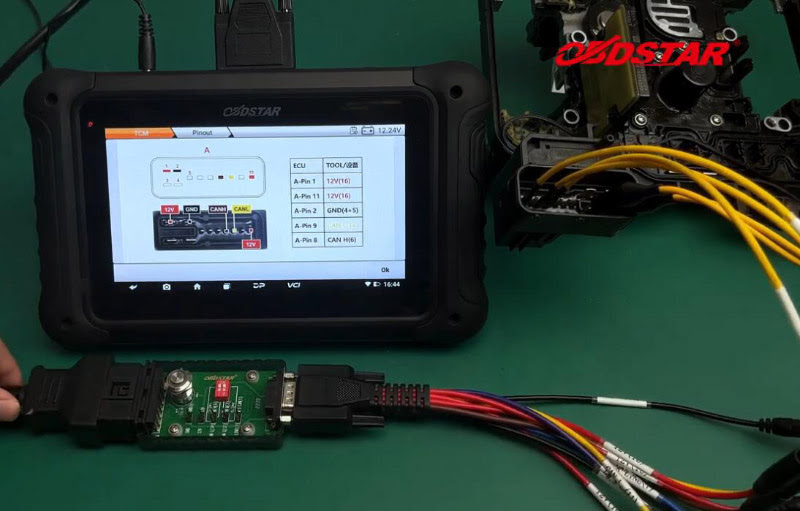

Connection requires P004 Adapter that is included in package.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-11

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-12

R/W INT&EXT EEPROM and FLASH.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-13

Also we can recalibrate odometer.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-14

Support List:

BrandECU BrandTypeDumpECU InfoRead eepromWrite eepromRead flashWrite flashRecalibrate ODOConnection Method
AUDITEMICDQ200(0AM/0CW) DQ200DxxTC1766✔✔✔✔✔✔BENCH
AUDITEMICDQ200(0AM/0CW) DQ200-MQBTC1766✔✔✔✔✔✔BENCH
AUDITEMICDQ250(02E/0D9)TC1766✔✔✔✔✔ BENCH
AUDITEMICDL501(0B5) DL501Gen1TC1766✔✔✔✔✔ BENCH
AUDITEMICVL381(0AW)TC1766✔✔✔✔✔✔BENCH
AUDITEMICDQ200 G2TC1784 ✔✔✔✔✔BENCH
AUDITEMICDL382TC1784 ✔✔✔✔ BENCH
SEATTEMICDQ200(0AM/0CW) DQ200DxxTC1766✔✔✔✔✔✔BENCH
SEATTEMICDQ200(0AM/0CW) DQ200-MQBTC1766✔✔✔✔✔✔BENCH
SEATTEMICDQ250(02E/0D9)TC1766✔✔✔✔✔ BENCH
SEATTEMICDL501(0B5) DL501Gen1TC1766✔✔✔✔✔ BENCH
SEATTEMICDQ200 G2TC1784 ✔✔✔✔✔BENCH
SKODATEMICDQ200(0AM/0CW) DQ200DxxTC1766✔✔✔✔✔✔BENCH
SKODATEMICDQ200(0AM/0CW) DQ200-MQBTC1766✔✔✔✔✔✔BENCH
SKODATEMICDQ250(02E/0D9)TC1766✔✔✔✔✔ BENCH
SKODATEMICDQ200 G2TC1784 ✔✔✔✔✔BENCH
SKODATEMICDL382TC1784 ✔✔✔✔ BENCH
VWTEMICDQ200(0AM/0CW) DQ200DxxTC1766✔✔✔✔✔✔BENCH
VWTEMICDQ200(0AM/0CW) DQ200-MQBTC1766✔✔✔✔✔✔BENCH
VWTEMICDQ250(02E/0D9)TC1766✔✔✔✔✔ BENCH
VWTEMICDL501(0B5) DL501Gen1TC1766✔✔✔✔✔ BENCH
VWTEMICDQ200 G2TC1784 ✔✔✔✔✔BENCH
VWTEMICDL382TC1784 ✔✔✔✔ BENCH
AUDITEMICDQ200 G2-PQTC1784 ✔✔✔✔✔BENCH
SEATTEMICDQ200 G2-PQTC1784 ✔✔✔✔✔BENCH
SKODATEMICDQ200 G2-PQTC1784 ✔✔✔✔✔BENCH
VWTEMICDQ200 G2-PQTC1784 ✔✔✔✔✔BENCH
AUDITEMICDQ400ETC1784 ✔✔✔✔ BENCH
VWTEMICDQ400ETC1784 ✔✔✔✔ BENCH
AUDITEMICDL501(0B5) DL501_Gen2TC1784 ✔✔✔✔ BENCH
VWTEMICDL501(0B5) DL501_Gen2TC1784 ✔✔✔✔ BENCH
SEATTEMICDL501(0B5) DL501_Gen2TC1784 ✔✔✔✔ BENCH
VWCONTINENTALDQ500TC1766 ✔✔✔✔ BENCH
AUDICONTINENTALDQ500TC1766 ✔✔✔✔ BENCH
AUDITEMICDQ380  ✔✔✔✔ BENCH
SKODATEMICDQ380  ✔✔✔✔ BENCH
VWTEMICDQ380  ✔✔✔✔ BENCH
AUDIZF8HP  ✔✔✔✔ BENCH
VWZF8HP  ✔✔✔✔ BENCH
AUDIBOSCHDQ500  ✔✔✔✔ BENCH
SEATBOSCHDQ500  ✔✔✔✔ BENCH
SKODABOSCHDQ500  ✔✔✔✔ BENCH
VWBOSCHDQ500  ✔✔✔✔ BENCH
AUDIBOSCHDQ381  ✔✔✔✔ BENCH
SEATBOSCHDQ381  ✔✔✔✔ BENCH
SKODABOSCHDQ381  ✔✔✔✔ BENCH
VWBOSCHDQ381  ✔✔✔✔ BENCH


3.FoxFlash (€650)

This tool is mainly for ECU tuning.

Select TCU Gear>>Maker>>Vehicle>>Driver

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-15

Care if bench box is required during connection.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-16

Simple R/W EEPROM&FLASH.

clone-vag-gearbox-launch-x431-obdstar-or-foxflash-17

Online check Support List:

https://www.dfb-technology.com/driver-list.html
