Autel IM508/ IM608 Ford Ecosport ID49 Add Key Step-by-step Guide

This is a step-by-step guide on Ford Ecosport ID49 key adding using Autel IM508 Key Programmer/IM608 Key Programmer.


Procedures:

Go to

IMMO>>Ford>>Manual selection>>Ford>>Asia>>Ecosport>>2018-2019>>Blade key

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-1

Select

Immo status scan>>Quick erase DTC

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-2

Enter "Add key (guided)".

Whole process and notes.

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-3

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-4

Read Flash and Security Access will take some time.

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-5

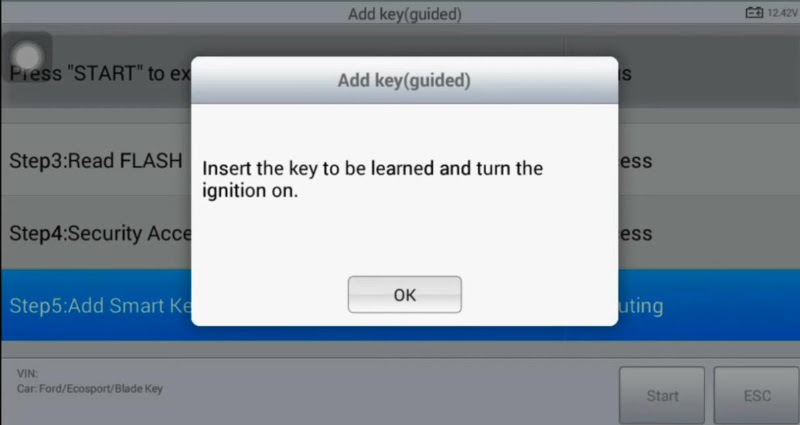

Add Smart Key.

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-6

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-7

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-8

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-9

All process completed.

Scan immo status again, and the 3rd key is added.

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-10

autel-im508-im608-ford-ecosport-id49-add-key-step-by-step-guide-11

Done!
